Decoding the Magic: Building Your Own nm and otool

Have you ever wondered how your computer deciphers binary files? If you're curious about the inner workings of executables, you're in for a treat! Recently, I embarked on a journey to implement the nm and otool commands in C. This adventure not only deepened my understanding of binaries and Unix systems but also opened up a fascinating world of low-level programming.

In this article, I'll share everything you need to create your own implementations of these powerful tools. But first, a word of advice: I strongly encourage you to tackle this project on your own. The process of exploring man pages and system header files will sharpen your skills and deepen your understanding in ways that simply reading about it cannot match.

Note: This implementation focuses on Mach-O, the current executable format for macOS. But don't worry if you're not on a Mac – the concepts we'll cover are applicable to other systems too!

For the impatient, here's the complete GitHub project.

The Anatomy of Executables

When your operating system fires up a binary, it expects the file to follow a predefined pattern. Think of it as a secret handshake between the OS and the executable. Each operating system has its own conventions:

• macOS uses Mach-O
• Linux primarily uses ELF
• Windows opts for PE

Curious about other formats? Check out this comprehensive list of executable file formats.

For a deep dive into the Mach-O format, this document is your treasure map.

Step 1: Identifying a Mach-O File

Every file has a secret identity, and in the world of executables, it's called the magic number. This special sequence of bytes, typically at the very beginning of the file, acts like a fingerprint. For Mach-O files, we have four possible magic numbers:

// Defined in <mach-o/loader.h>

#define  MH_MAGIC       0xfeedface
#define  MH_CIGAM       NXSwapInt(MH_MAGIC)
#define  MH_MAGIC_64    0xfeedfacf
#define  MH_CIGAM_64    NXSwapInt(MH_MAGIC_64)

These magic numbers differ based on two factors:

1. Structure size: 32-bit vs. 64-bit
2. Endianness: The order in which bytes are arranged

Fun fact: "CIGAM" is "MAGIC" spelled backwards. Clever, right?

If you're scratching your head about endianness, this article on big vs. little endian will clear things up!

Why nm and otool?

So, why are we building nm and otool? These commands are like X-ray glasses for Mach-O files. They allow us to:

1. Parse the file structure
2. Analyze the contents
3. Display the data in a human-readable format

Here's what each tool does:

• nm: Lists the symbols (like function names) in an executable.
• otool: Shows the hexdump of a specified segment. (Don't worry, we'll explain segments soon!)

Diving into the Mach-O Structure

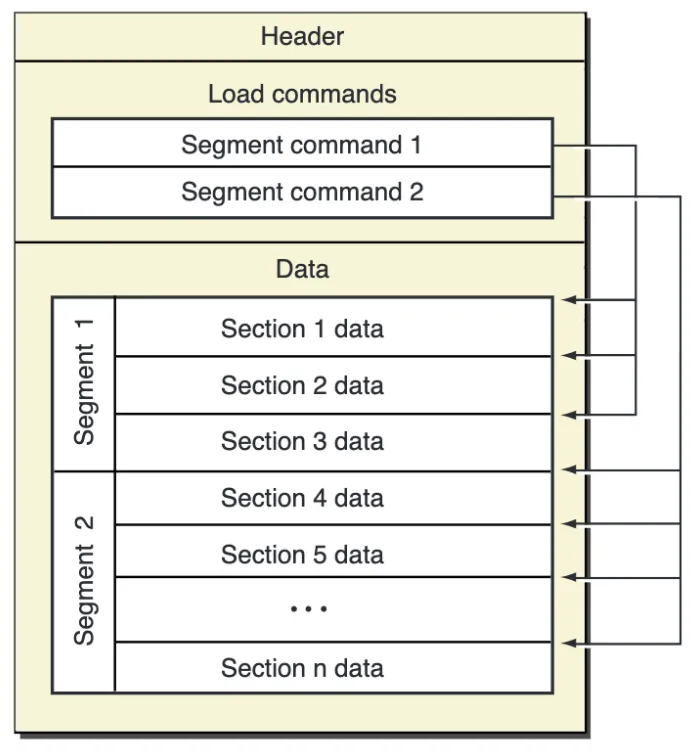

Imagine a Mach-O file as a nesting doll, with each layer revealing more details about the executable:

Accessing the File

First things first, we need to get our hands on the file's contents. We'll use a combination of open, fstat, mmap, and close to get a pointer to the start of the data:

Once we have access, it's time to check that magic number:

The Mach-O Header

Every Mach-O file starts with a header, which is like the table of contents for our executable:

This header is packed with useful information, such as:

• cpu_type: Which CPUs can run this executable
• filetype: The type of file (executable, library, core dump, etc.)

Load Commands: The Roadmap of the Binary

After the header come the load commands. Think of these as chapters in our executable book, dividing the binary into multiple sections. The complete list of load command types can be found in the loader.h header file.

For our purposes, we'll focus on two key commands:

1. LC_SYMTAB: Contains symbol information
2. LC_SEGMENT: Defines segments of the binary

We can iterate through these commands like this:

LC_SEGMENT: The Building Blocks

Segment commands are like chapters in our executable book. They tell us:

• Where to find a segment in memory
• How many bytes to allocate for it
• How many sections it contains

Each segment contains sections, which are like paragraphs in our chapter:

For otool, we'll need to hexdump the data at addr. For nm, we'll save the segment to match it later with symbols in the SYMTAB.

LC_SYMTAB: The Symbol Table

The symbol table is like an index for our executable book. It contains a list of nlist symbols:

To get the name of a symbol, we need to parse the strtab (string table). The nlist structure provides a wealth of information about each symbol:

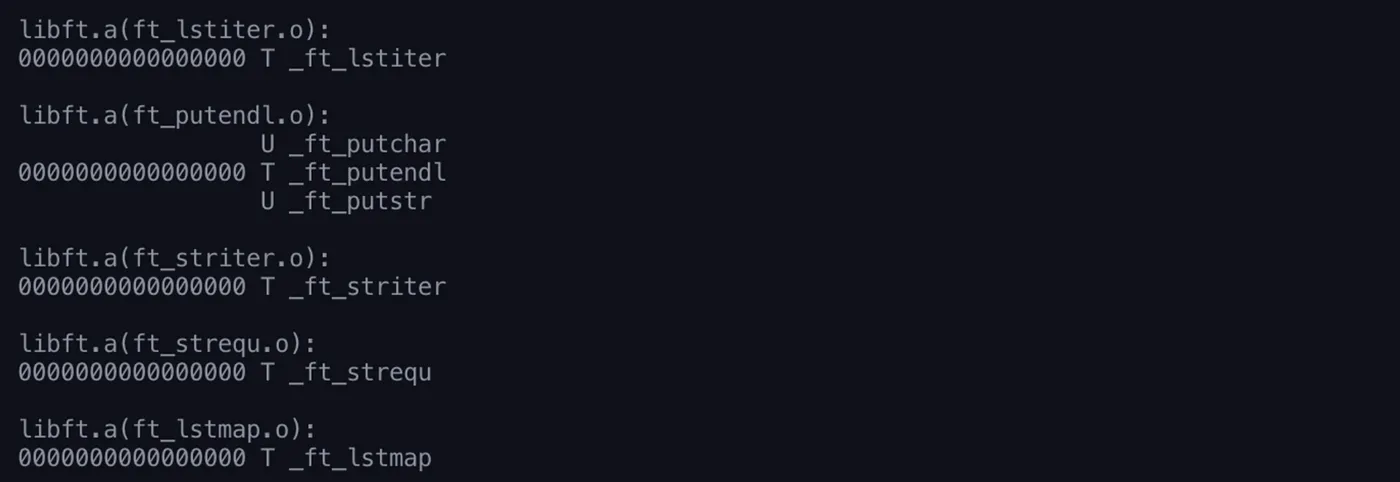

For nm, we need to construct a line for each symbol, showing:

1. The address
2. A letter describing the symbol type (e.g., T for exported methods, U for external methods)

Here's a complete list of symbol types.

Here's how we can determine the representation for a symbol:

When the N_SECT mask is true with sect->type, we need to find the type based on the given segment:

Leveling Up: Advanced Challenges

Congratulations! You now have the building blocks to create your own nm and otool. But if you want to take your implementation to the next level, consider these advanced challenges:

1. Handling Archives and Fat Files

"A fat binary, or multi-architecture binary, is a computer executable program which has been expanded with code native to multiple instruction sets which can consequently be run on multiple processor types." - Wikipedia

To parse these files, you'll need to dive into the <mach-o/fat.h> and <ar.h> header files. The process is similar to what we've covered, but with some extra layers.

2. Endian-ness Support

Remember how we mentioned big and little endian earlier? Sometimes you'll need to reverse the bit order of integers when reading header values. It's like solving a byte-order puzzle!

3. 32-bit and 64-bit Support

Be prepared to handle both 32-bit and 64-bit integers. It's like being bilingual in the world of binary!

4. Guarding Against Corrupt Files 🏴‍☠️

In the wild world of executables, not every file plays by the rules. A corrupted binary might try to send your program on a wild goose chase through memory. To prevent this, always check that your pointer stays within the bounds of the file. Think of it as putting guardrails on your binary exploration!

Wrapping Up

Building your own nm and otool is like crafting a set of X-ray specs for executables. It's a journey that will deepen your understanding of how our computers really work under the hood. So roll up your sleeves, fire up your favorite text editor, and start exploring the fascinating world of binary analysis!

Remember, the key to mastering this project is patience and curiosity. Don't be afraid to experiment, and always keep your trusty man pages close at hand. Happy coding, and may your symbols always be in order! 🖥️🔍
